Ultra High Speed Turbo Blower

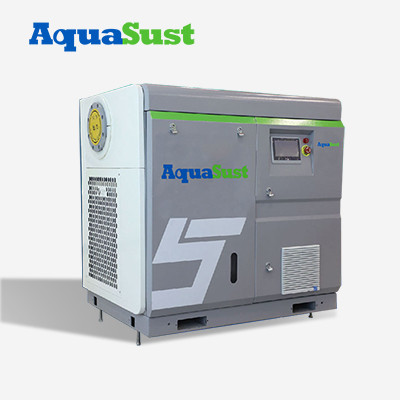

What is Ultra High Speed Turbo Blower
The Ultra High Speed Turbo Blower is a single stage centrifugalblower, which does not need a gearbox, accelerator and coupling, and ispowered by a high speed Permanent Magnet SynchronousMotor(PMSM) is directly driven, while the motor uses a variablefrequency drive(VFD) for speed regulation. The blower IMPELLER isdirectly connected to the motor. While the rotating shaft is suspendedon the active AlR BEARINGS. Because there is no physical contact andno lubricating oil system, so with the characteristics of high efficiency,energy saving, low noise, reliable operation and long-termmaintenance.
The Aquasust Ultra High Speed Turbo Blower centrifugal compressor adopts a fuel cell air compressor head, having passed automotive-grade testing, -40°C to 80°C high/low-temperature operation tests, IP67 protection rating tests, automotive-grade vibration and shock tests, and a special technical design based on bearing-impeller integration, successfully enduring 300,000 start-stop cycles, ensuring high stability and reliability of the blower.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Learn about the product: Aquasust Ultra High Speed Turbo Blower
Learn about the product: Aquasust Ultra High Speed Turbo Blower
"Wide Application" Pneumatic Design
1.Single host: three gears of low, medium and high in the same power range
2.Dual host: one for use and one for standby, addition principle, two working conditions for one machine
3.Multiple hosts: adapt to working condition matching, host automatic start and stop, find high-efficiency zone
4.Centrifuge: precise gas supply, supply as much as needed
Aquasust Ultra High Speed Turbo Blower-Performance Data
1.Maximum speed 120000 rpm +
2.DN value exceeds 4.5 million
3.Can start and stop frequently,verified to start and stop 300,000+
4.Can withstand harsh working conditions impact 50g
5.High temperature 85℃ Low temperature -40℃ operation
6.Variable frequency adjustment,changing working conditions in less than 1S
7.Ultra-fast response 0→120000 only takes 4S
8.High efficiency up to 94% at ultra-high speed
9.Flow rate adjustment range 20-120%
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

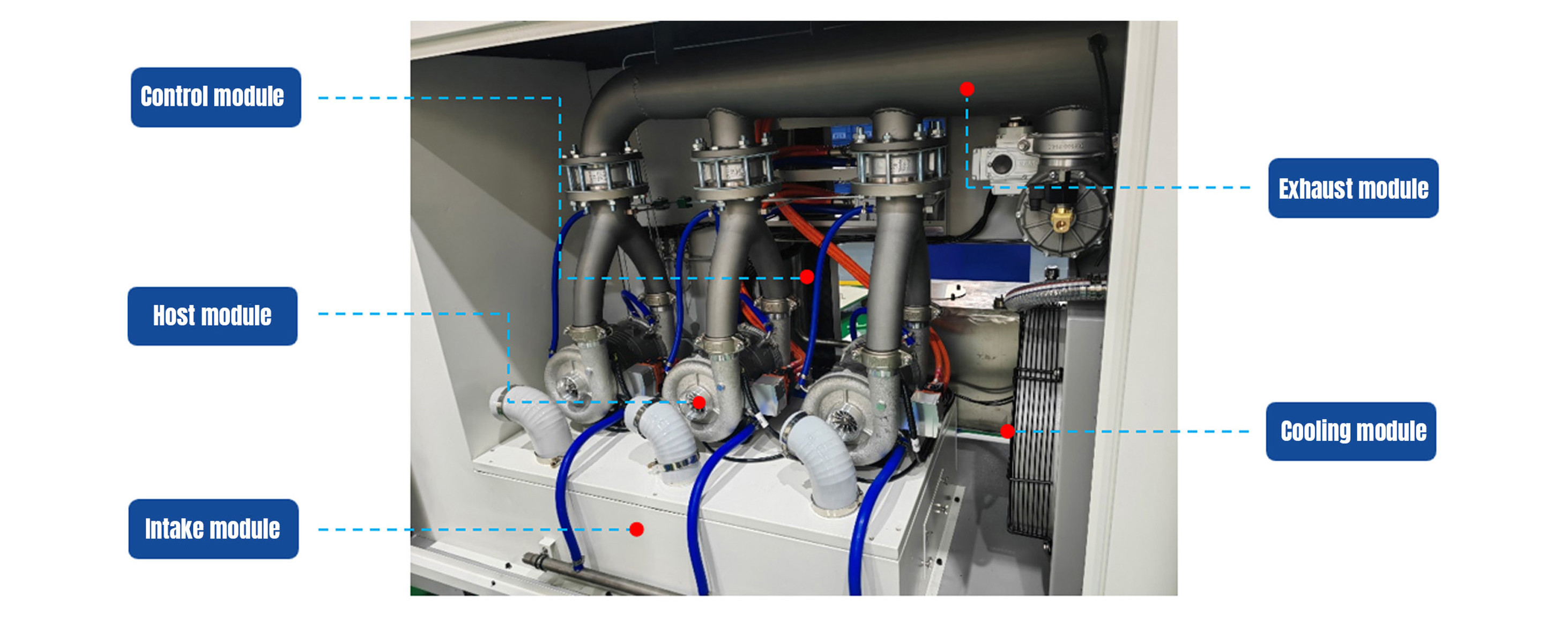

Aquasust Ultra High Speed Turbo Blower Overall Structure
Control Module:Ultra-fast acceleration, ultra-fast response speed, AI self-learning
Host Module :Multiple machines in parallel(in-machine backup, precise control, broadband application)
Intake Module:L-Shaped Enclosed Intake Structure(Noise Suppression + Flow Rectification)Cooling Module:Water-gas heat exchange, motor heat exchange（The integrated independent built-in cooling system is adopted, which does not require external cold zone water pipes, is convenient and reliable, and the motor temperature is low. The inlet air temperature is low, the temperature rise of the outlet air is low, and the absolute temperature is also low.）
Exhaust Module:Flexible Manifold Design(Multiple machines with one outlet, multiple machines with multiple outlets)
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

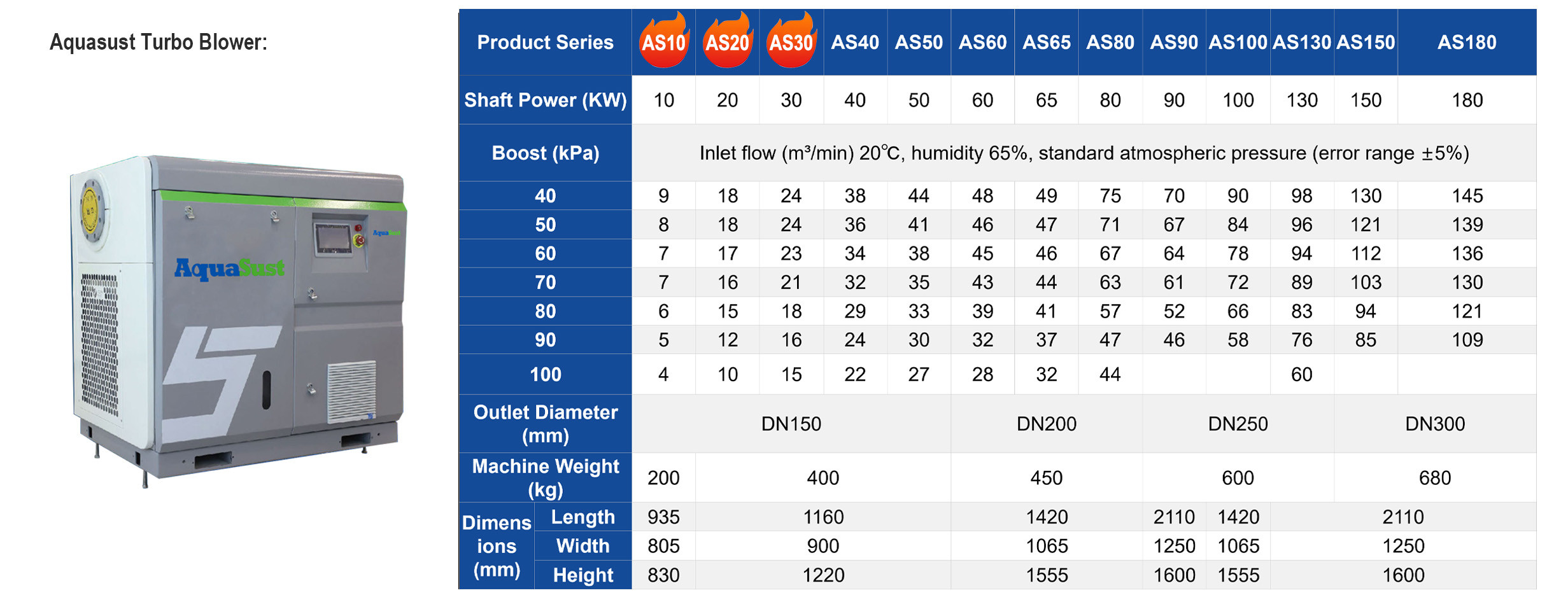

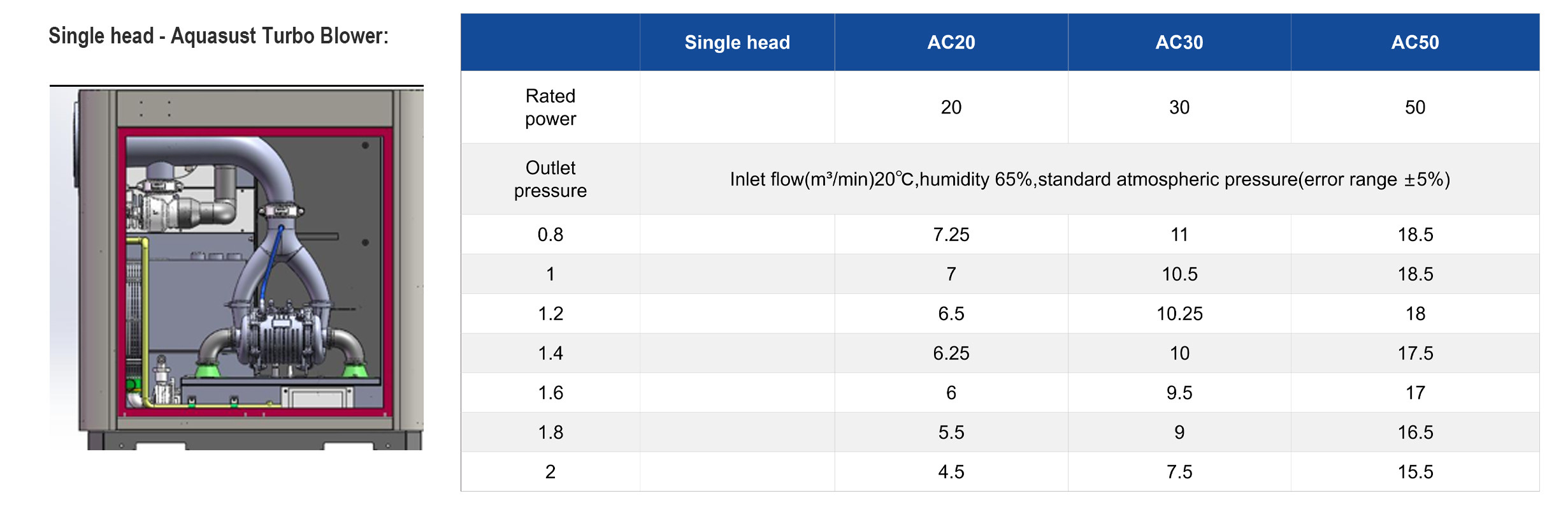

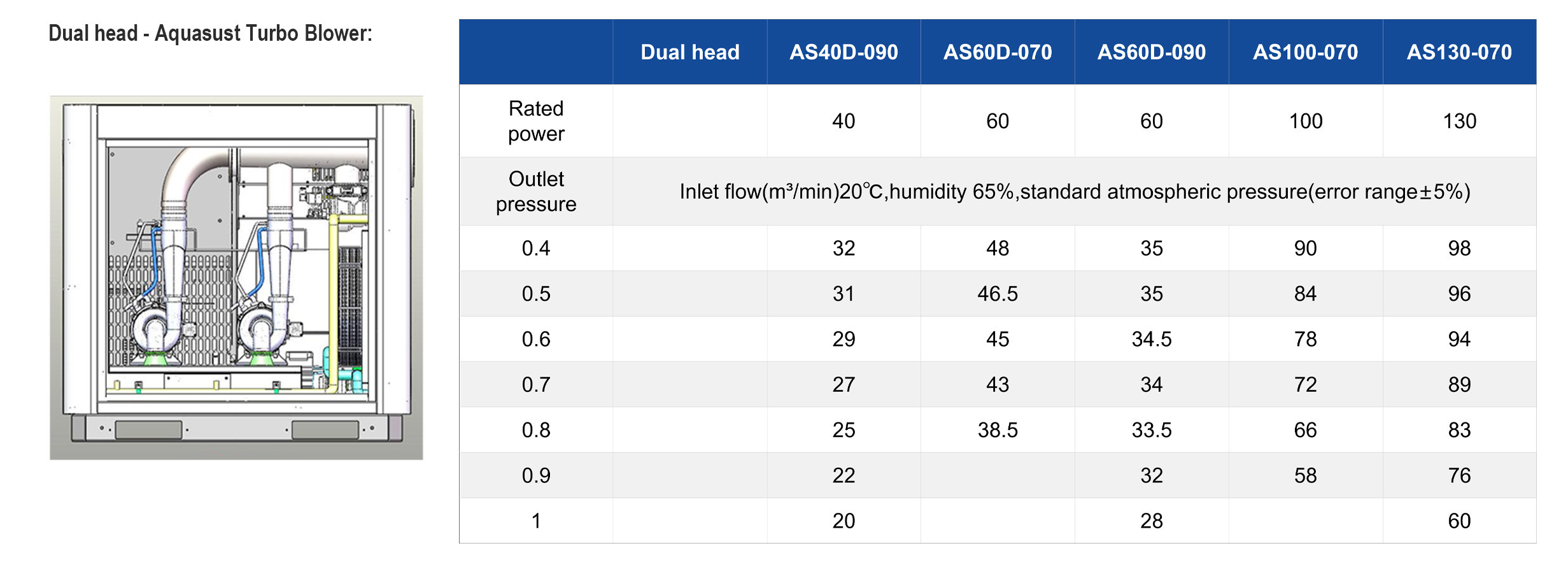

Product Parameters：
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
3 results
ViewList
Model:AS-AR
Revolutionize your textile wastewater treatment with our OEM & ODM Ultra-High-Speed Turbo Blower. Low energy consumption, high efficiency!
FavoritesModel:AS-AR
Revolutionize your textile wastewater treatment with our OEM & ODM Ultra-High-Speed Turbo Blower. Low energy consumption, high efficiency!
FavoritesModel:AS-AR
Revolutionize your textile wastewater treatment with our OEM & ODM Ultra-High-Speed Turbo Blower. Low energy consumption, high efficiency!

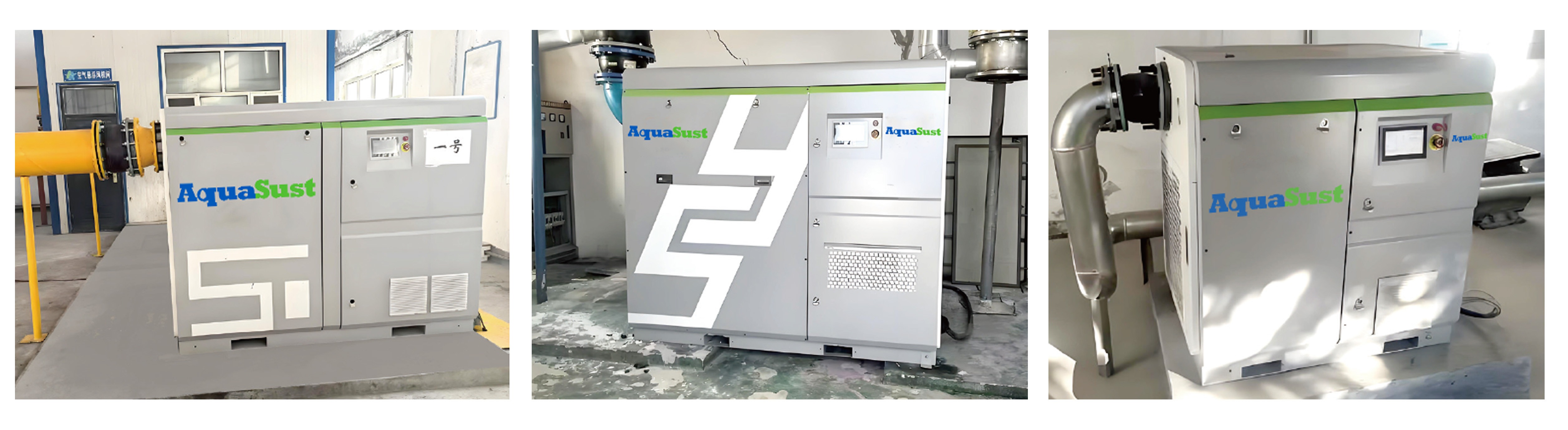

FavoritesAquasust Ultra High Speed Turbo Blower On-site photos
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Learn about the product: Ultra High Speed Turbo Blower Core technology

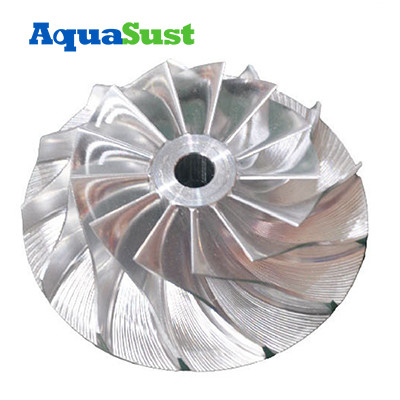

Three-dimensional flow high-efficiency impeller
1. High-strength aviation aluminum AL7075 and other materials are selected to ensure excellent wear resistance and deformation resistance, with a service life of more than 30 years.
2. With strong anti-surge stability and pressure-bearing capacity, the impeller is directly connected to the motor to realize 100% power transfer efficiency.
3. Characterized by long-term stability, pressure-bearing capacity and high efficiency, it is suitable for application scenarios that require high performance and reliability.
Oil-free air suspension bearing
1.100% pure oil-free suspension bearing, no
mechanical friction, no mechanical noise and
vibration.
2.the bearing can be started more than
300,000 times, suitable for any frequent
start-stop conditions.
Aluminium alloy casting worm shell
1. Lightweight: Aluminum alloy has low density and good strength, which makes the casting of the worms shell has the characteristics of lightweight, help to reduce the overall weight of the equipment, improve the convenience of handling and installation.
2. Excellent thermal conductivity: Aluminum uses high-quality aluminum alloy to make the entire body, equipped with a good heat dissipation system, each connection point is designed according to the excellent heat dissipation effect, to ensure that the heat dissipation effect is more concentrated, and prolong the service life.

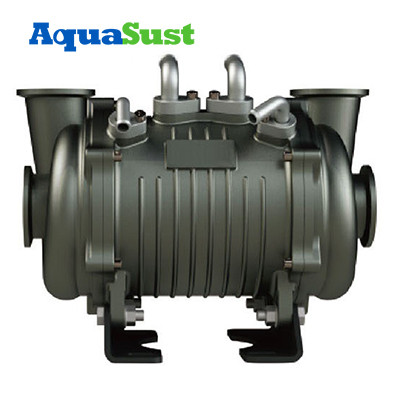

Ultra-high-speed frequency-modulated
permanent magnet synchronous motor
1.The motor is small in size, light in weight, and
has a high speed (120,000 rpm) that can achieve
stepless speed control.
2.The motor main shaft and
impeller use direct connection technology, with
low operating failure rate and high efficiency.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Ultra High Speed Turbo Blower's 5 core technologies

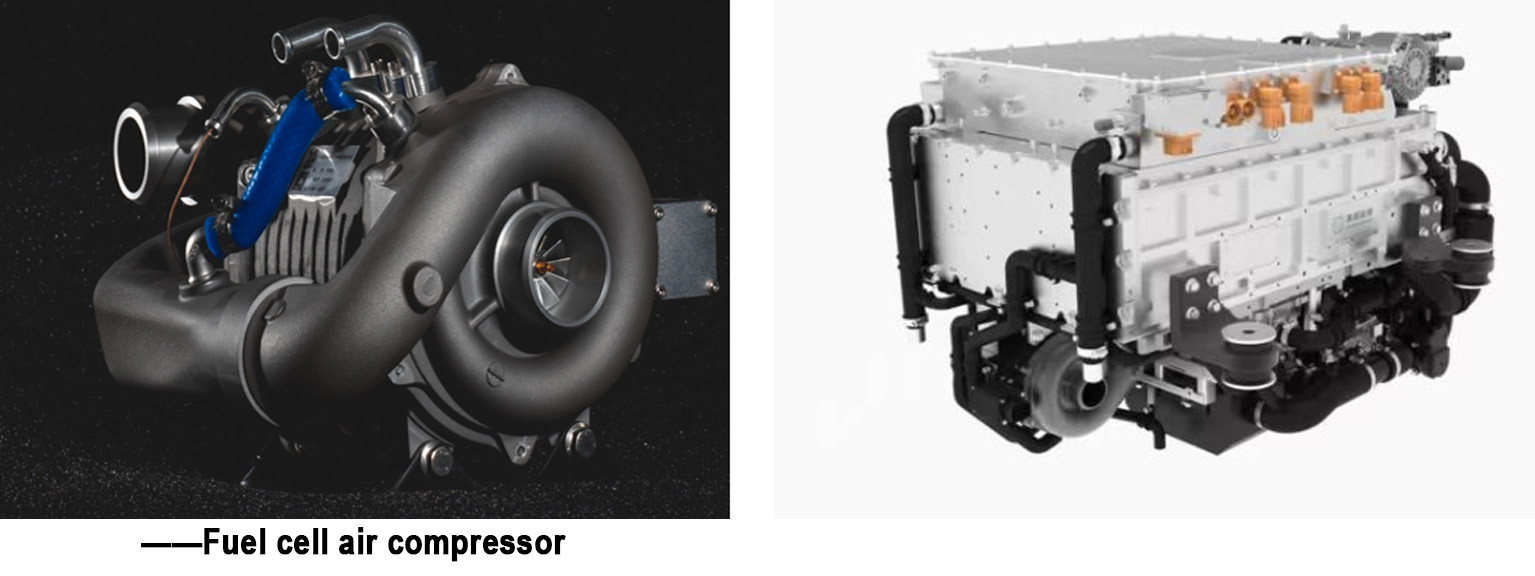

1.“Aquasust” latest technology-Hydrogen fuel cell compressor technology
The main task of the compressor is to pressurize the ambient air and transport it to the cathode
side of the fuel cell stack (hydrogen is usually supplied by a high-pressure storage tank at
reduced pressure).
Centrifugal compressor: high efficiency, suitable for large flow, high speed (high-speed motor
required). Maximum pressure can reach 2 kg.
2..Ultra-high speed permanent magnet motor technology
Currently, the parameters of high-speed motors cover rated power from 10kW to 300kW,
speed frequency from 10,000 to 180,000 rpm, and the matching of motors with product
working conditions, coupled rotor systems, heat dissipation cooling systems, and
high-speed drive control is better.
3.Ultra-high speed air floating hydraulic bearing technology
Complete air floating bearing theoretical design, simulation analysis, test verification,
material analysis, process manufacturing, debugging and matching independent
research and development technology. At present, the three core parameters of air
floating bearings, DN value, load capacity and high temperature characteristics,
have reached the national key research and development plan project (No.: 2018YFB2000105),
and the index parameters are at the international leading level.
4.High-efficiency pneumatic design technology
With over a decade of theoretical design and engineering application experience, combined
with the characteristics and application expertise of ultra-high-speed direct-drive products,
the developed 3D-flow impeller model stage delivers higher aerodynamic efficiency,
a wider flow range, and superior application compatibility. It has been widely applied in fields
such as fuel cells, environmental protection, textiles, and refrigeration.
5. Modular design: flexible and adaptable "genetic code"
To meet the needs of diversified applications, the ultra-high-speed blower adopts a modular architecture:
Optimize individual modules, targeted design, intelligent management, quickly adapt to needs, and improve system reliability and stability.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
