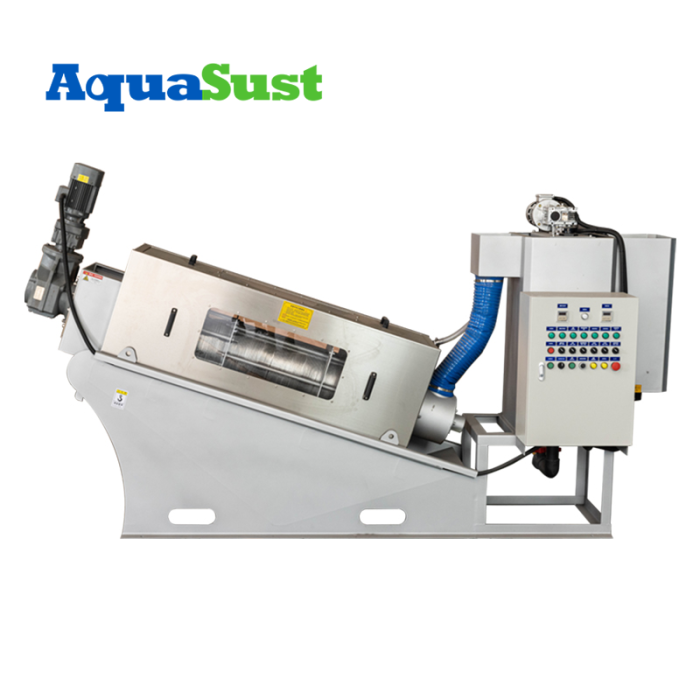

Screw Press Cow Manure Dewater Machine AS-NH301 |Manufacturing Mobile Sludge Dewatering Units Screw Press For Dairy Wastewater Treatment

Categories	Medium Sludge Dewatering Machine
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-NH301
FOB port	shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 30,2025

Contact Now

Favorites

Detail Information

Dewatering Machine Screw Press

AS-NH301 Selection

(1) AS-NH301 Sludge pump, dosing pump selection reference:

Processing capacity Sludge concentration

50[kg-DS/h] 10000[mg/L]

50[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=5m³/h

Treatment volume:50[kg-DS/h]

Unit conversion:1000[g/kg]

Sludge concentration:1000[mg/L

Unit conversion: 1000[mg/g])

Sludge flow rate:5m*h

(2) 50[kg-DS/h]x0.3%x1000x1000[g/kg]= 150L/h

Treatment volume:50[kg-DS/h]

Agent addition rate:0.3%

Dilution rate:1000

Unit conversion:1000[g/kg]

Agent flow rate:150L/h

Dewatering Machine Screw Press AS-NH301 Selection

(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.

Dewatering Machine Screw Press AS-NH301 Parameters

AS-NH301 SELECTION PARAMETERS
Processing capacity	30~50(DS-kg/h)
Electricity consumption	1.5kw/h
Flushing water consumption	40L/h
Polymer flocculant addition rate	For DS/T~0.3%
Maintenance management frequency	5min/day
Water supply pressure	0.1~0.2MPa
Mud cake discharge distance from the ground	700mm
Mechanical size	L3250V950H1780(mm)
Net weight	668kg
Operating weight	1200kg
