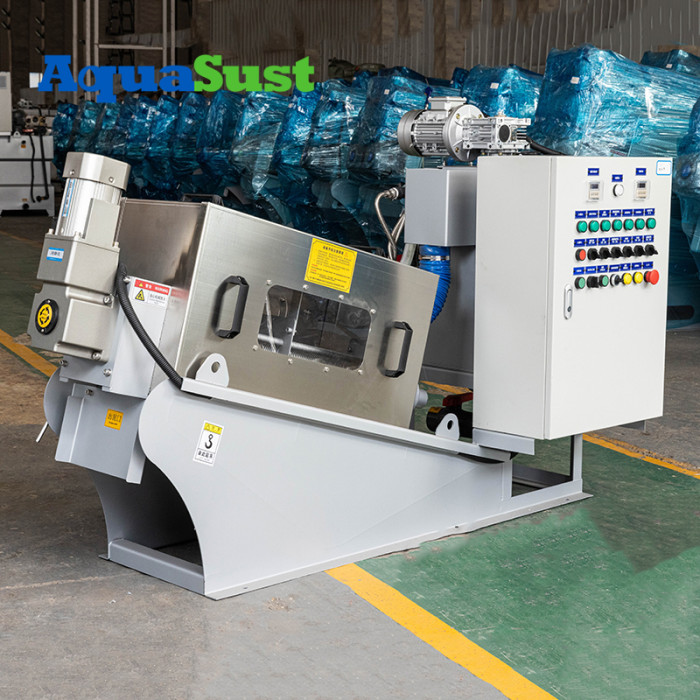

Dewatering Machine Screw Press AS-NH131 | Customized Dewatering Machine Screw Press for lmicipal Wastewater Treatment

Categories	Small Sludge Dewatering Machine
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-NH131
FOB port	shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 30,2025

Contact Now

Favorites

Detail Information

Dewatering Machine Screw Press

AS-NH131 Selection

(1) AS-NH131 Sludge pump, dosing pump selection reference:

Processing capacity Sludge concentration

10[kg-DS/h] 10000[mg/L]

10[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=1m³/h

Treatment volume:10[kg-DS/h]

Unit conversion:1000[g/kg]

Sludge concentration:1000[mg/L

Unit conversion: 1000[mg/g])

Sludge flow rate:1m*h

(2) 10[kg-DS/h]x0.3%x1000x1000[g/kg]= 30L/h

Treatment volume:10[kg-DS/h]

Agent addition rate:0.3%

Dilution rate:1000

Unit conversion:1000[g/kg]

Agent flow rate:30L/h

Dewatering Machine Screw Press AS-NH131 Selection

(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.

Dewatering Machine Screw Press AS-NH131 Parameters

AS-NH131 SELECTION PARAMETERS
Processing capacity	6-10(D5-kg/h)
Electricity consumption	0.2kw/h
Flushing water consumption	24L/h
Polymer flocculant addition rate	For DS/T~0.3%
Maintenance management frequency	5min/day
Water supply pressure	0.1~0.2MPa
Mud cake discharge distance from the ground	280mm
Mechanical size	L2000V700H1060(mm)
Net weight	182kg
Operating weight	280kg
