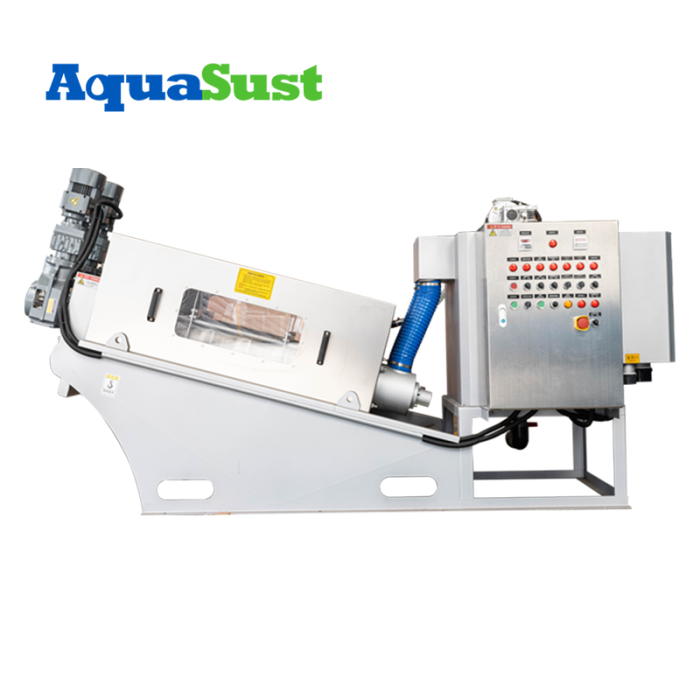

Sludge Dewatering Screw Press AS-NH202 |Customized Sludge Dewatering Screw Press For Landfill Leachate Treatment

Categories	Small Sludge Dewatering Machine
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-NH202
FOB port	shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 30,2025

Contact Now

Favorites

Detail Information

Dewatering Machine Screw Press

AS-NH202 Selection

(1) AS-NH202 Sludge pump, dosing pump selection reference:

Processing capacity Sludge concentration

30[kg-DS/h] 10000[mg/L]

30[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=3m³/h

Treatment volume:30[kg-DS/h]

Unit conversion:1000[g/kg]

Sludge concentration:1000[mg/L

Unit conversion: 1000[mg/g])

Sludge flow rate:3m*h

(2) 30[kg-DS/h]x0.3%x1000x1000[g/kg]= 90L/h

Treatment volume:30[kg-DS/h]

Agent addition rate:0.3%

Dilution rate:1000

Unit conversion:1000[g/kg]

Agent flow rate:90L/h

Dewatering Machine Screw Press AS-NH202 Selection

(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.

Dewatering Machine Screw Press AS-NH202 Parameters

AS-NH202 SELECTION PARAMETERS
Processing capacity	18~30(DS-kg/h)
Electricity consumption	1.1kw/h
Flushing water consumption	32L/h
Polymer flocculant addition rate	For DS/T~0.3%
Maintenance management frequency	5min/day
Water supply pressure	0.1~0.2MPa
Mud cake discharge distance from the ground	400mm
Mechanical size	L2000V950H1450(mm)
Net weight	515kg
Operating weight	680kg
