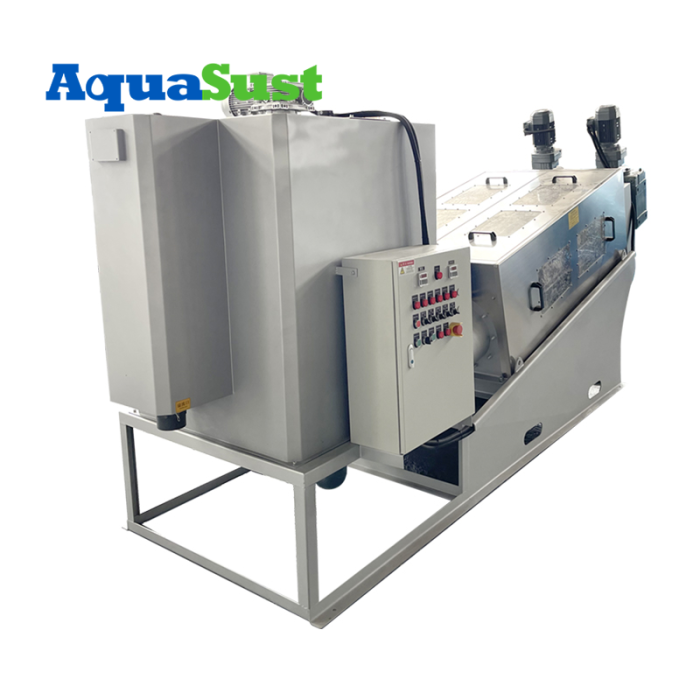

Dewatering Screw Presses Machine AS-NH402 |Manufacturer Dewatering Screw Presses Machine For Chemical Industry Wastewater Treatment

Categories	Large Sludge Dewatering Machine
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-NH402
FOB port	shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 30,2025

Contact Now

Favorites

Detail Information

Dewatering Machine Screw Press

AS-NH402 Selection

(1) AS-NH402 Sludge pump, dosing pump selection reference:

Processing capacity Sludge concentration

300[kg-DS/h] 10000[mg/L]

300[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=30m³/h

Treatment volume:300[kg-DS/h]

Unit conversion:1000[g/kg]

Sludge concentration:1000[mg/L

Unit conversion: 1000[mg/g])

Sludge flow rate:30m*h

(2)300[kg-DS/h]x0.3%x1000x1000[g/kg]= 900L/h

Treatment volume:300[kg-DS/h]

Agent addition rate:0.3%

Dilution rate:1000

Unit conversion:1000[g/kg]

Agent flow rate:900L/h

Dewatering Machine Screw Press AS-NH402 Selection

(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.

Dewatering Machine Screw Press AS-NH402 Parameters

AS-NH402 SELECTION PARAMETERS
Processing capacity	180~300(DS-kg/h)
Electricity consumption	4.5kw/h
Flushing water consumption	200L/h
Polymer flocculant addition rate	For DS/T~0.3%
Maintenance management frequency	5min/day
Water supply pressure	0.1~0.2MPa
Mud cake discharge distance from the ground	650mm
Mechanical size	L4500V1350H2100(mm)
Net weight	2200kg
Operating weight	4200kg
