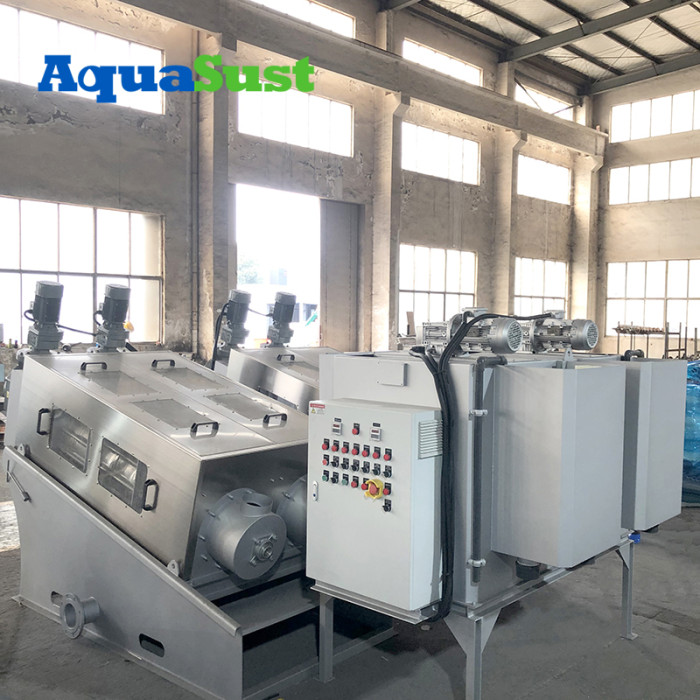

Stainless Steel Dewatering Screw Press AS-NH404 |Manufacturer Stainless Steel Dewatering Screw Press For Hospital Wastewater Treatment

Categories	Large Sludge Dewatering Machine
Brand	AquaSust Wastewater Treatment Solutions
Model	AS-NH404
FOB port	shanghai
Terms of Payment	L/C, D/A, D/P
Update Time	Apr 30,2025

Contact Now

Favorites

Detail Information

Dewatering Machine Screw Press

AS-NH404 Selection

(1) AS-NH404 Sludge pump, dosing pump selection reference:

Processing capacity Sludge concentration

600[kg-DS/h] 10000[mg/L]

600[kg-DS/h] *1000[g/kg] + (1000[mg/L+ 1000[mg/g])=60m³/h

Treatment volume:600[kg-DS/h]

Unit conversion:1000[g/kg]

Sludge concentration:1000[mg/L

Unit conversion: 1000[mg/g])

Sludge flow rate:60m*h

(2)600[kg-DS/h]x0.3%x1000x1000[g/kg]= 1800L/h

Treatment volume:600[kg-DS/h]

Agent addition rate:0.3%

Dilution rate:1000

Unit conversion:1000[g/kg]

Agent flow rate:1800L/h

Dewatering Machine Screw Press AS-NH404 Selection

(3) Please be slightly larger than the theoretical value when choosing equipment, specifications update without advance notice, and set Timing please ask for drawings.

Dewatering Machine Screw Press AS-NH404 Parameters

AS-NH404 SELECTION PARAMETERS
Processing capacity	360~600(DS-kg/h)
Electricity consumption	9kw/h
Flushing water consumption	400L/h
Polymer flocculant addition rate	For DS/T~0.3%
Maintenance management frequency	5min/day
Water supply pressure	0.1~0.2MPa
Mud cake discharge distance from the ground	900mm
Mechanical size	L4500V1800H2100(mm)
Net weight	4500kg
Operating weight	7200kg
